CTFd-Whale 镜像创建延迟修复

CTFd-Whale 镜像创建延迟修复

IShirai_KurokoI

实际上,由于他创建的服务需要自行再去创建task,而task有一个prepare的阶段,这阶段就是这段等待时间。如果我们想要前端进行等待,需要修改两个地方:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
service = client.services.create(
image=container.challenge.docker_image,
name=f'{container.user_id}-{container.uuid}',
env={'FLAG': container.flag}, dns_config=docker.types.DNSConfig(nameservers=dns),
networks=[get_config("whale:docker_auto_connect_network", "ctfd_frp_containers")],
resources=docker.types.Resources(
mem_limit=DockerUtils.convert_readable_text(
container.challenge.memory_limit),
cpu_limit=int(container.challenge.cpu_limit * 1e9)
),
labels={
'whale_id': f'{container.user_id}-{container.uuid}'
}, # for container deletion
constraints=['node.labels.name==' + node],
endpoint_spec=docker.types.EndpointSpec(mode='dnsrr', ports={})
)

在这之后,我们不让函数自己返回,而是加上一段判断:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
count = 0
while True:
count += 1
try:
tasks = service.tasks()
for task in tasks:
current_state = task['Status']['State']
if 'running'.lower() in current_state.lower():
print("容器启动成功!")
return
except:
pass

if count > 960:
service.remove()
raise Exception("容器创建超时")
time.sleep(0.5) # 等待0.5秒后重新检查

通过获取task里的对象的state,变成running之后再返回,进行注册路由等操作,这样前端就会一直等待

image-20230630165128707

但是有一个问题,如果用户等不及了,在此时刷新页面,那么就会出现一个问题,页面显示了domain:0的地址。

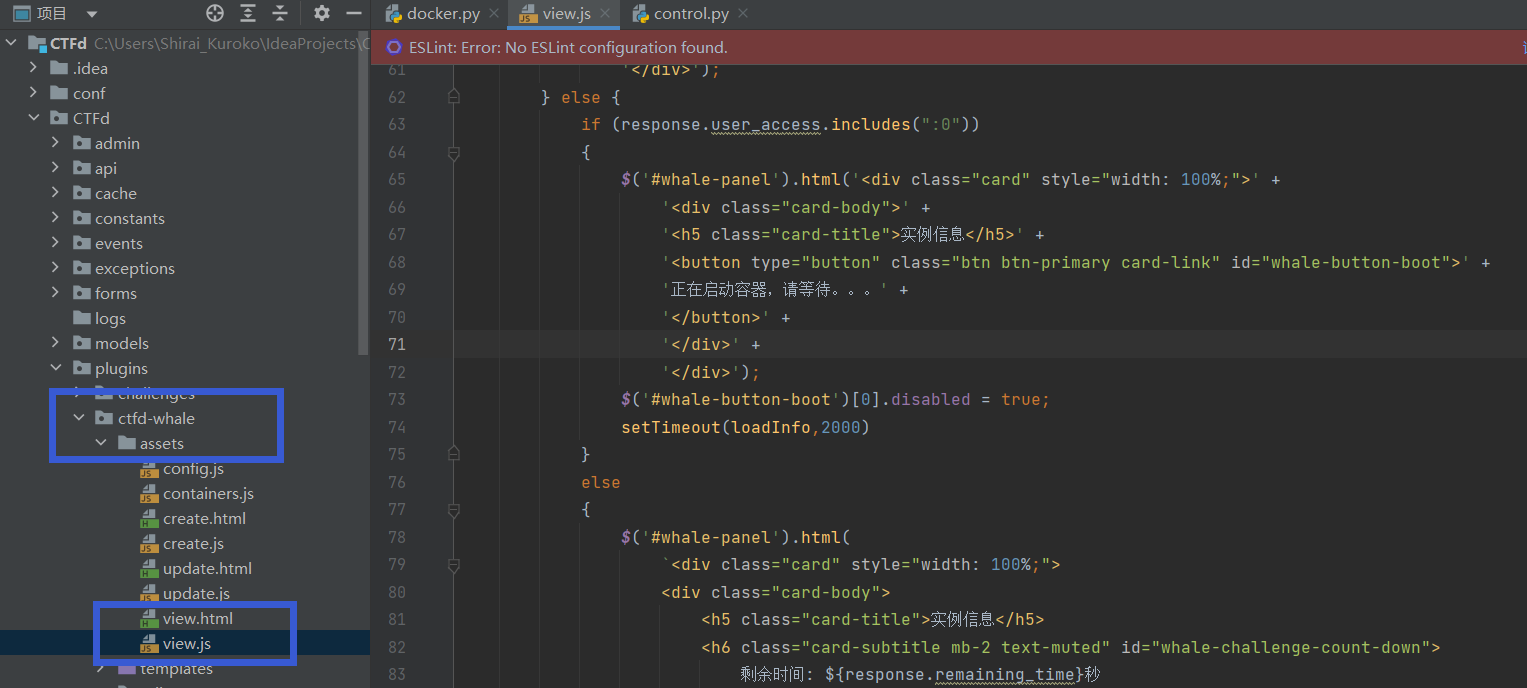

那么就在前端修改一下loadinfo函数。

image-20230630165314205

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
function loadInfo() {
var challenge_id = $('#challenge-id').val();
var url = "/api/v1/plugins/ctfd-whale/container?challenge_id=" + challenge_id;

var params = {};

CTFd.fetch(url, {
method: 'GET',
credentials: 'same-origin',
headers: {
'Accept': 'application/json',
'Content-Type': 'application/json'
}
}).then(function (response) {
if (response.status === 429) {
// User was ratelimited but process response
return response.json();
}
if (response.status === 403) {
// User is not logged in or CTF is paused.
return response.json();
}
return response.json();
}).then(function (response) {
if (window.t !== undefined) {
clearInterval(window.t);
window.t = undefined;
}
if (response.success) response = response.data;
else CTFd.ui.ezq.ezAlert({
title: "Fail",
body: response.message,
button: "OK"
});
if (response.remaining_time === undefined) {
$('#whale-panel').html('<div class="card" style="width: 100%;">' +
'<div class="card-body">' +
'<h5 class="card-title">实例信息</h5>' +
'<button type="button" class="btn btn-primary card-link" id="whale-button-boot" ' +
' onclick="CTFd._internal.challenge.boot()">' +
'启动题目实例' +
'</button>' +
'</div>' +
'</div>');
} else {
if (response.user_access.includes(":0"))
{
$('#whale-panel').html('<div class="card" style="width: 100%;">' +
'<div class="card-body">' +
'<h5 class="card-title">实例信息</h5>' +
'<button type="button" class="btn btn-primary card-link" id="whale-button-boot">' +
'正在启动容器,请等待。。。' +
'</button>' +
'</div>' +
'</div>');
$('#whale-button-boot')[0].disabled = true;
setTimeout(loadInfo,2000)
}
else
{
$('#whale-panel').html(
`<div class="card" style="width: 100%;">
<div class="card-body">
<h5 class="card-title">实例信息</h5>
<h6 class="card-subtitle mb-2 text-muted" id="whale-challenge-count-down">
剩余时间: ${response.remaining_time}
</h6>
<h6 class="card-subtitle mb-2 text-muted">
局域网域: ${response.lan_domain}
</h6>
<a id="user-access" class="card-text" target="_blank" href=""></a><br/><br/>
<button type="button" class="btn btn-danger card-link" id="whale-button-destroy"
onclick="CTFd._internal.challenge.destroy()">
关闭实例容器
</button>
<button type="button" class="btn btn-success card-link" id="whale-button-renew"
onclick="CTFd._internal.challenge.renew()">
延期实例容器
</button>
</div>
</div>`
);
$('#user-access').html(response.user_access);
function showAuto() {
const c = $('#whale-challenge-count-down')[0];
if (c === undefined) return;
const origin = c.innerHTML;
const second = parseInt(origin.split(": ")[1].split('s')[0]) - 1;
c.innerHTML = '剩余时间: ' + second + '秒';
if (second < 0) {
loadInfo();
}
}
window.t = setInterval(showAuto, 1000);

var port = response.user_access.split(':');
var host = document.location.host.split(':')[0];
document.getElementById("user-access").href="http://"+host+":"+port[1];
}
}
});
};

这样前端该等待的时候就会一直等待啦。(最后三行是为了实现链接可以点击,可加可不加)

PS:我们Scr1w战队二次开发的CTFd整合版地址:https://github.com/dlut-sss/CTFD-Public
